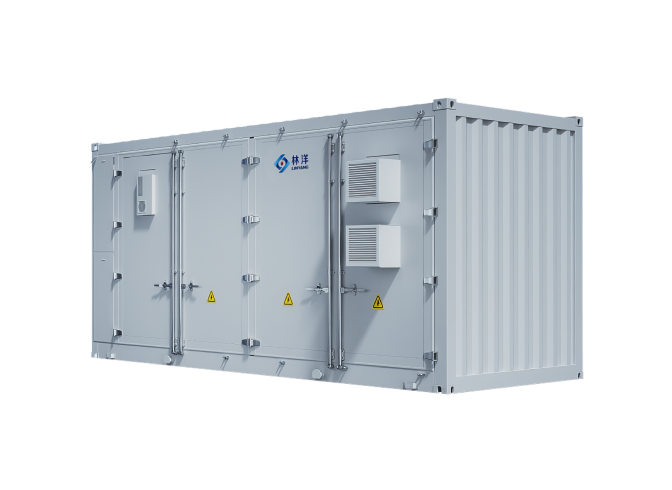

Linyang Power Atlantic® Liquid Cooling Battery Container PA-5000
Power Atlantic Liquid Cooling Battery Container with a highly integrated design, maximum capacity up to 5MWh.
Download Product Manual
Main Features
-
Low Noise
-
Top airflow design with smart variable frequency fan technology
-
-
High Safety
-
PACK-level and cabin-level gas fire suppression, cabin-level water extinguishing, and aerosol fire suppression for electrical cabinets
-
-
Intelligence
-
In-depth fusion of BMS/PCS/EMS data, supports real-time failure diagnosis and prediction
-
-
High Reliability
-
Intelligent comprehensive environmental control, supports harsh environment operation
-
-
Low Power Consumption
-
Thermal resistance balance design and intelligent optimization control to support life time low consumption
-
See All
Protocol & Standards
-
IEC 62477-1
-
EN/IEC 61000
-
IEC 62933-5-2
-
UL 9540
-
UN 38.3
Technical Specification
Linyang Power Atlantic® Liquid Cooling Battery Container PA-5000
| Cell Capacity | 3.2V/314Ah |
|---|---|
| System Battery Capacity | 1P416S*12 |
| Rated Power | 5.015MWh |
| Voltage Range | 1164.8~1497.6V |
| Dimension(W* D* H) | 6058*2438*2896mm |
| Weight | ~41.5t/9t |
| Enclosure Coating | C3/C4/C5 |
| IP Grade | IP55 |
| Operation Temperature Range | -30℃~50℃ |
| Humidity | 0~95% |
| Thermal management system | Liquid cooling Application Altitude :≤4000m |
